  1. 홈
  2. 에너지체인
  3. 로봇 장비
  4. triflex® R
triflex® R ("라운드"인 경우 R)은 igus®가 공급하는 3세대 3축 에너지 체인입니다. 다차원 에너지 공급 장치 triflex® R는 열악한 산업 환경에서 복잡한 6축 로봇 응용을 위해 특별히 개발되었습니다. 몇 가지 중요한 설계 특성: triflex® R의 부분적인 강화를 위한 광섬유 로드 옵션, 체인 링크 당 뒤틀림 약 +/- 10°, 볼과 소켓 조인트를 통한 높은 인장 강도 triflex® R 제품 범위는 100개의 이상으로 부품으로 포함하므로 대형 용접 로봇에서 소형 팔레트 로봇까지 모든 요구사항을 충족할 수 있습니다. triflex® R은 iF 디자인 상을 수상하였습니다.

대표적인 산업 부문과 용도

First choice for industrial robots, machine tools, 6-axle handling equipment, conveyor technology, general mechanical engineering and many more.

Applications with cobots

Palletising with cobots

TRE.40.058.0.B in conjunction with the UR metal clamps ensure a trouble-free energy supply on the cobot.
Palletising with cobots

Quality control tests with cobots

The cable to the 2D camera and the vacuum hose are safely guided through the TRE.40.058.0.B and attached to the cobot with the UR metal clamps.
Quality control tests with cobots

LED bulbs production with cobots

The TRE.40.058.0.B in combination with UR metal clamps ensure trouble-free cable guidance on the cobot for LED bulb production in confined spaces
LED bulbs production with cobots

Overview of triflex® R applications:

로봇 엔드 이펙터

동체와 로봇 엔드 이펙터의 중성화 충돌과 대형 작업 공간.
로봇 엔드 이펙터

Palletising robot: safe 3D cable guidance triflex® with triflex energy chain

TRE.B e-chain in combination with the retraction system (TRE.RS) allow 360° rotation of axis 6
Palletising robot: safe 3D cable guidance triflex® with triflex energy chain

Remote controlled manipulator

Special solution with 2 reverse TR.RSE.50 retraction systems ensures compact installation space with maximum retraction length
Remote controlled manipulator

3D printing in XXL format

Safe cable management through TRE.B with the pneumatic retraction system (RSP)
3D printing in XXL format

Robotic systems in automotive welding and assembly lines

Multi-axis energy supply with low-profile design.
Robotic systems in automotive welding and assembly lines

Coating with Fanuc P350

The 3D movement of the TRC e-chain with the retraction system (RSE) even allows working overhead
Coating with Fanuc P350

Heavy-duty cable robot

Move up to 250 kg freely in space
Heavy-duty cable robot

Friction stir welding with Fanuc

The special welding method using a Fanuc equipped with TR.RS.60 retraction systems and the easy-to-fill TRE.60.087.0.B
Friction stir welding with Fanuc

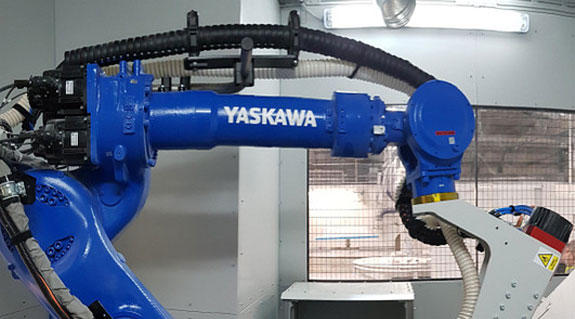

Deburring with Yaskawa

Deburring shower trays with a fibre-rod on a Yaskawa
Deburring with Yaskawa

Cable protection

triflex® as cable protection system in corporate colour at ING Bank.
Cable protection

Robust 3D energy chains for industrial robots in injection-moulding systems

Here, a triflex energy chain protects the pneumatic cables that are attached to a robot on an injection-moulding machine
Robust 3D energy chains for industrial robots in injection-moulding systems

Four-fold load capability

Multi-dimensionally moving energy supply system for a palletising robot
Four-fold load capability

Mobile laser hardening system

Reliable 3D energy-chain for a mobile laser hardening system
Mobile laser hardening system

CNC multi-spindle lathes

Greater freedom of motion at very high cycle rates
CNC multi-spindle lathes

Multi-dimensional energy supply system for a flame cutting machine

The energy chains and cables in this flame cutting machine encounter problems such as heat, flying sparks, and extreme amounts of dirt.
Multi-dimensional energy supply system for a flame cutting machine

Multi-directional sideloader

This sideloader solves flexible logistics tasks for wooden panels.
Multi-directional sideloader

Robots in the automotive industry

Energy supply system for robots in car factory: two-thirds fewer failures
Robots in the automotive industry

Assembly robots in the automotive industry

Multidimensionally moveable energy supply systems provide the highest flexibility and the longest holding times in all complex movements, and at the same time are installation friendly.
Assembly robots in the automotive industry

Clean room technology

The number of freely hanging cables should be bundled together. The specific movements executed by the robot stress the energy cables to a high degree.
Clean room technology

의약 산업

The task was to design a reliable handling and also update it optically according to the latest technology.
의약 산업

Multi-axis robots

Maintenance free with cables and multi-dimensional energy chains.
Multi-axis robots

Satellite salvage service

An increasing amount of space junk, in other words no longer required or defect parts from space missions orbiting the earth, is also threatening current missions.
Satellite salvage service

Household appliances production

Just 24 hours passed between order, delivery and installation. The entire system functions without any problem from the first day on.
Household appliances production

Photovoltaics

Dust, sand, heat and rain: energy chain for solar technology for multi-axis movements in a photovoltaic system
Photovoltaics

Project ADVOCUT

Design of a machine tool with highly integrated mechatronic milling module.
Project ADVOCUT

Suspended articulated arm robot

triflex® R as a complete solution for several tasks at once on a suspended robot
Suspended articulated arm robot

Handling system

Robotic handling system for circuit boards. Flexible energy supply system in use in clean room technology.
Handling system

Automatic screwdriver system

A faultless supply of screws is guaranteed by the bend protection of the triflex® R system.
Automatic screwdriver system

Dummy robot

A very high acceleration provided an enormouschallenge for the design engineers of this robot.
Dummy robot

Cable guide on the robot

Prior to the use of the e-chain®, the cables were fastened with cable ties. That frequently led to entangled cables and the corkscrew effect, which lets the cables become susceptible to core ruptures.
Cable guide on the robot

Cable guide on the industrial robot

With this industrial robot, a fixed pipe between the 3rd and 6th axis was replaced with a three-dimensional triflex® R energy chain.
Cable guide on the industrial robot

Laser-welding-robot

This laser welding robot works extremely fast. Here, a very flexible and, above all, fail-safe energy supply system is required.
Laser-welding-robot

SCARA robot

The special feature of thisapplication is the hot chips produced during the machining process, which do not stick tothe igus® e-chain® and therefore extremely reduce the maintenance expenditure as a result.
SCARA robot

Spot welding robot in vehicle construction

The downtimes have been drastically reduced through the use of an igus® solution for this robot in automotive construction, too.
Spot welding robot in vehicle construction

Self-stabilizing platform "Ampelmann“

This platform, which has been given the name “Ampelmann”, is used on the open sea.
Self-stabilizing platform "Ampelmann“

Further interesting applications from extremely diverse areas can be found here.
